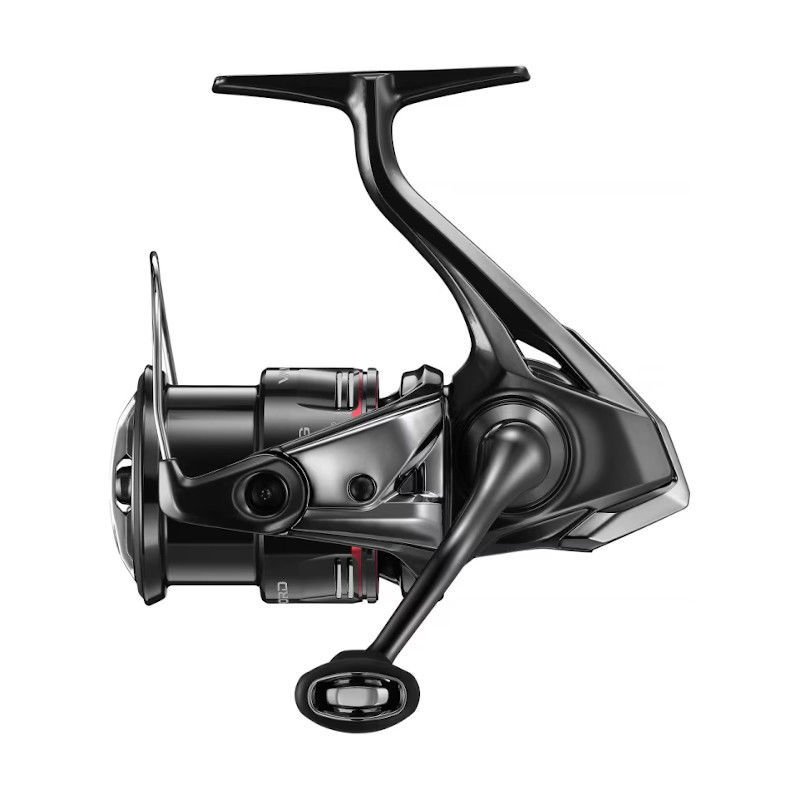

Shimano Vanford FA 4000

Perfect for a wide range of finesse fishing styles, the Vanford is part of the Magnumlite Series and pushes the boundaries of lightweight technology and engineering, delivering remarkable finesse that you can actually feel and will most certainly appreciate.

The inertia required to start the Vanford rotor moving is almost imperceptible. It’s hard to describe the sensation, but pick one up and you will immediately know what we mean. With sensitivity and lightness comes control, and with control comes better fishing and more success. It’s a win-win and when it comes to lightweight lure fishing set-ups, there is very little that can compete with the Vanford. Combine it with any high quality finesse lure rod and you will immediately enhance the balance, enabling you to fish better, for longer and increasing your enjoyment to higher levels than you thought possible.

The sensitivity of the Vanford is partly as a result of the second generation Magnumlite Rotor, which along with the body is engineered from Shimano’s exclusive Ci4+ composite material. This is also why the reel feels so light in the hand. Internally, HAGANE Gear, MicroModule II, X-SHIP, InfinityDrive, InfinityXross and Silent Drive work seamlessly together to deliver smoothness and a deceptive amount of power. The Vanford is also fitted with Shimano’s advanced Duracross drag, which provides exceptional, accurate control when playing hard fighting fish. For trouble-free line management Anti-Twist Fin controls the pressure on the line that goes through the line roller onto the spool and is especially benificial when fishing with very lightweight lures.

Hagane
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.

Hagane Gear
The HAGANE Drive Gear is produced by Shimano’s coldforging technology, without the need for additional machining. This delivers a longlasting smoothness, strength, lightness
and power at the very heart of the reel. Traditional diecast, machined gears are less durable under heavy loads.

Micromodule II
Improved Micro Module gearing, making the reeling extreme smooth.

XShip
XShip is a combination of features that work together to create much greater efficiency. By positioning the pinion gear close to the centre line of the large diameter drive gear, more power is transferred from the handle to the rotor. The pinion gear is also supported by two Shimano ARB roller bearings. This creates more stability.

INFINITYDRIVE
INFINITYDRIVE technology is an advanced structure that produces lower friction and lighter winding. Pinion gear is supported by the spool shaft instead of the pinion gear bearing on the spool side. Rotational resistance of the gear section has been reduced without compromising gear strength,

INFINITYXROSS
INFINITYXROSS provides superior gear durability through industry-leading design and cutting-edge manufacturing technology. Advancements in the gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.

DURACROSS
DURACROSS provides smooth, reliable drag performance and incredible durability. The material is reinforced by weaving in new fibers in a manner orthogonal to the direction of the fibers that make up conventional drag washers. We have succeeded in increasing abrasion resistance more than 10 times while maintaining smooth drag performance.

MGL Rotor
The new design of the Magnumlite Rotor produces unprecedented light rotation. The rotor profile, which was previously symmetrical, is now asymmetrical. The bail arm mechanism, which was previously situated on the same side as the line roller, has been moved to the opposite side. This improves balance and combined with a lightweight line roller, titan bail and optimum arrangement of rotor thickness, a 14% saving in rotation inertia has been achieved increasing sensitivity to previously unreached levels.

XProtect
The contact type triplelip structure is introduced to the roller clutch, the pivotal point concerning water resistance. In this structure, the first lip prevents water from entering through the space between the rotor and the body. In addition, the special grease between the second and third lip  where it makes contact with the rotor collar located at the upper part of the roller clutch  not only resists water from entering but also minimizes friction resistance. Without jeopardizing the ‘silky smooth rotation capacity’, the vital feature of STELLA SW, exceptional water resistance, has been achieved to withstand the crashing and splashing of waves and spray.

Anti Twist Fin
Elastic fins are installed in close proximity to the line roller section. By suppressing line slack, the fins reduce the phenomenon of line dropping out of the lower part of the spool and line wrapping around the spool while the line is still twisted.

G Free Body
G Free Body technology has been developed to shift the reel’s centre of gravity closer to the rod. This has been achieved by moving the worm shaft oscillation mechanism 19mm from the bottom of the reel to the top. By moving the centre of gravity closer to the anglers hand position, the G Free Body helps to reduce fatigue and enhance casting comfort.

ARC Spool
Shimano ARC Spool is a patented spool design with an angled spool lip. This design enables the line to leave the spool with less friction and in smaller coils resulting in longer more
accurate casts. ARC spools are proven to reduce backlash and wind knots when using braid.

Long Stroke Spool
The long stroke spool has longer stroke compared to conventional spool designs. This longer stroke specification results in greater casting distance.

CI4+
CI4+ is an advanced version of the original CI4. This highly technical material is 2.5 times stiffer than CI4 and is used on many highend Shimano reels to increase weight savings. Use of CI4+ for the body and rotor also delivers remarkable stiffness for better reel efficiency.

Shimano S ARB
Shimano S ARB bearings are high corrosion resistant ARB ball bearings with an extra shield for improved protection against sand, salt or dust.
